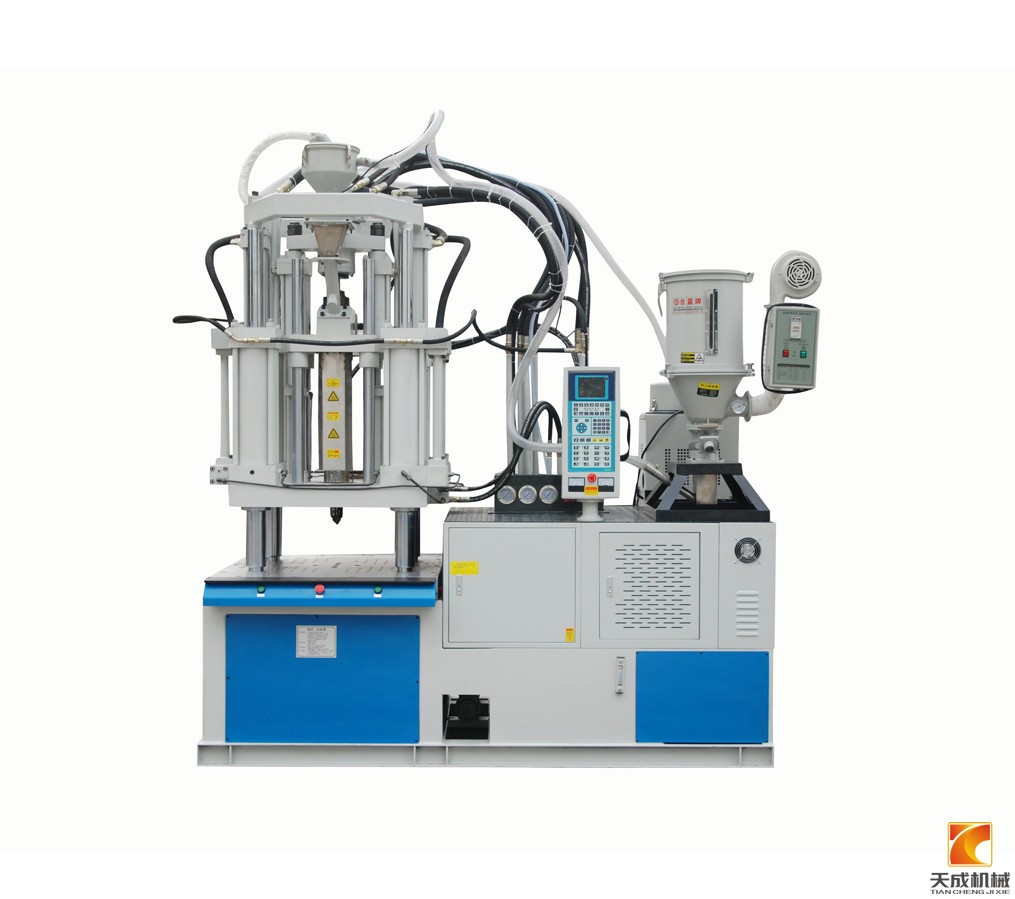

Four cylinder linkage plate series:

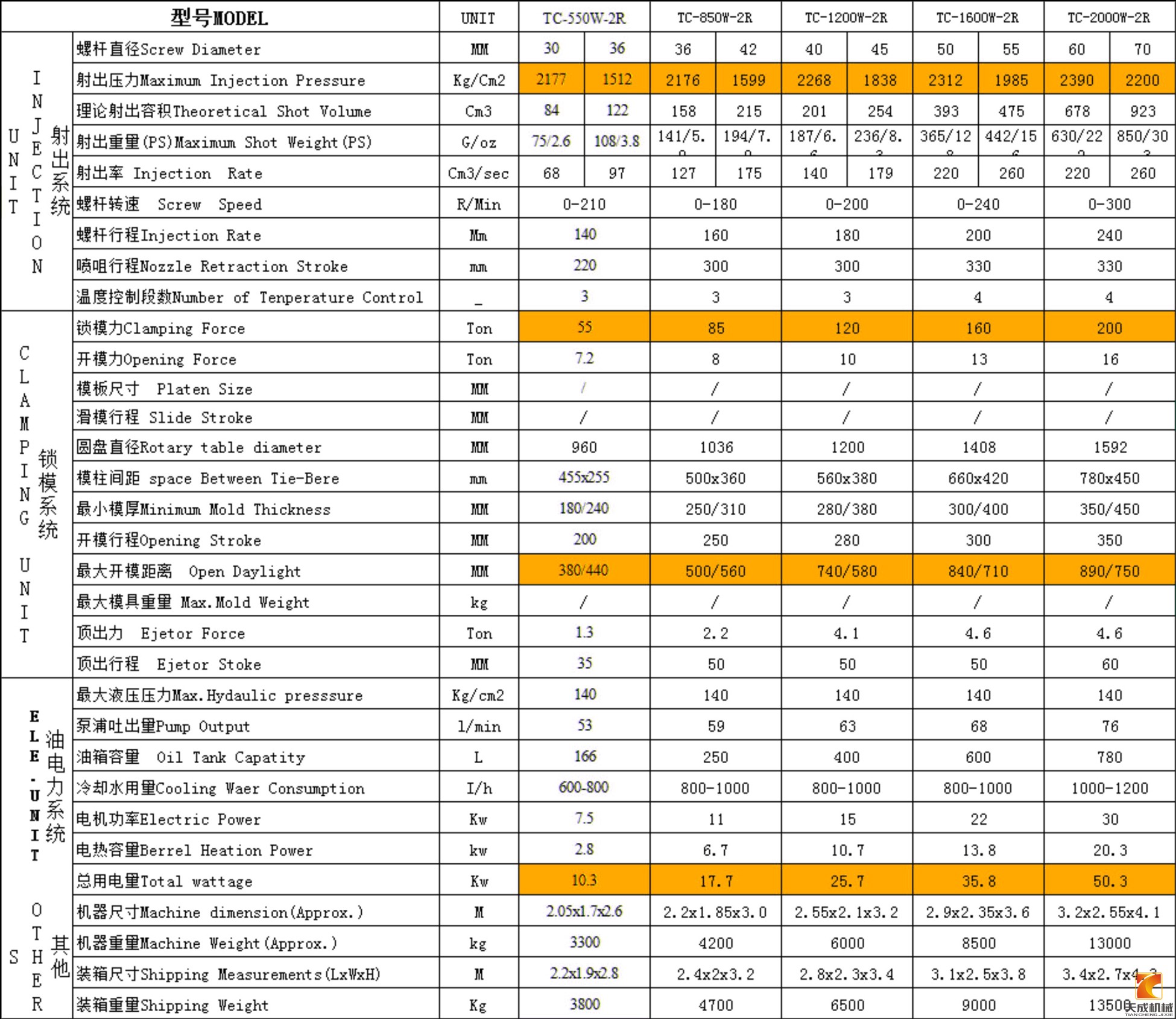

Clamping force (55 ton to 200 ton), weight (75 g to 650 g).

Function characteristics:

1. Vertical clamping unit with three cylinders linkage direct pressure clamping design, clamping force can more fully and evenly, mold protect higher precision and is suitable for the plastic molding have inserts and multi-purpose injection molding process, the double location (or sod) disk design, production efficiency can be improved 30% 50%. Long as particularly suitable for cooling to finalize the design or due to put insert need more auxiliary time of production of large quantities of products.
2. The disc back and forth on the same horizontal plane most 180 - degree rotation, can let a face in a fixed operators do take and insert, work and high production efficiency.
3. On the surface of the disc positioning, with a fixed pin lock, can be definite disk rotation stopped, can have a high precision positioning, make more accurate molding and mold clamping.
4. The wheel rotation is controlled by independent servo motor, position precision can reach 0.16 points (1 degree = 60).
5. Can be mounted to the automatic embedding and remove the automation device, such as a full machine automatic operation.
6. Label the disc 2 station, station with special needs can choose 3, 4, to achieve convenient operation, and automatic into the attachment plan, improve efficiency, increase production capacity.
