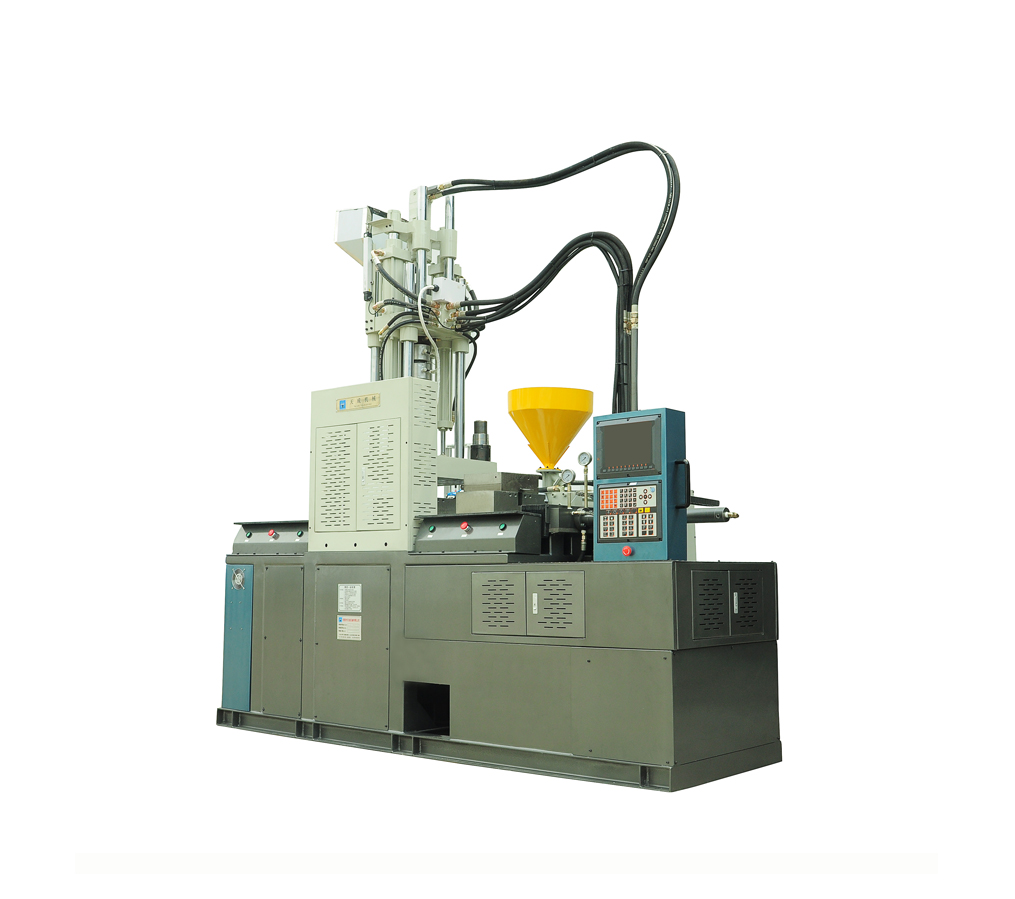

Vertical lie mixed color series:

Clamping force (55 ton to 200 ton), weight (75-850 - g).

Function characteristics:

1. The vertical clamping, vertical, horizontal injection, is suitable for the plastic molding have inserts and multi-purpose injection molding process, the double location design, production efficiency can be improved 30% 50%. Long as particularly suitable for cooling to finalize the design or due to put insert need more auxiliary time of production of large quantities of products.
2. Alternate back and forth on the same horizontal plane, can let a face in a fixed operators do take and insert, work and high production efficiency.
3. Slide the positioning, with a fixed pin lock, ensures that stopped, can have a high precision positioning, make more accurate molding and mold clamping.
4. The skateboard adopts independent control, position precision can reach 0.16 points (1 degree = 60).
5. Can be mounted to the automatic embedding and remove the automation device, such as a full machine automatic operation.
6. Mark skateboard to 2 station, to achieve convenient operation, and automatic into the attachment plan, improve efficiency, increase production capacity.
